Asus BT-211 is not detected by mageia (Solved)

[egoitzro]

hello, a few months ago when I still used the cauldron of mageia the device bluetooth Asus BT-211 was detected correctly by mageia string but it is not detected and when using MCC "set and detect hardware" appears to me as if a scanner or something similar, as I can fix this?

My current version of Mageia is 5 x64

[doktor5000]

Please show the output as root of

Code: Select all

journalctl -ab | grep -i blue
systemctl status bluetooth.service
lspcidrake -v
rfkill list all
hciconfig -a
rpm -qa | grep -i blue

[egoitzro]

journalctl -ab | grep -i blue

Code: Select all

uzt 25 01:53:11 localhost kernel: Bluetooth: Core ver 2.20
uzt 25 01:53:11 localhost kernel: Bluetooth: HCI device and connection manager initialized
uzt 25 01:53:11 localhost kernel: Bluetooth: HCI socket layer initialized
uzt 25 01:53:11 localhost kernel: Bluetooth: L2CAP socket layer initialized
uzt 25 01:53:11 localhost kernel: Bluetooth: SCO socket layer initialized
uzt 25 01:53:11 localhost kernel: Bluetooth: Firmware file "ath3k-1.fw" not found
uzt 25 01:53:28 localhost dbus[962]: [system] Activating via systemd: service name='org.bluez' unit='dbus-org.bluez.service'
uzt 25 01:53:28 localhost bluetoothd[5977]: Bluetooth daemon 5.28
uzt 25 01:53:28 localhost dbus[962]: [system] Successfully activated service 'org.bluez'
uzt 25 01:53:28 localhost bluetoothd[5977]: Starting SDP server
uzt 25 01:53:28 localhost kernel: Bluetooth: BNEP (Ethernet Emulation) ver 1.3
uzt 25 01:53:28 localhost kernel: Bluetooth: BNEP filters: protocol multicast
uzt 25 01:53:28 localhost kernel: Bluetooth: BNEP socket layer initialized
uzt 25 01:53:28 localhost bluetoothd[5977]: Bluetooth management interface 1.8 initialized
uzt 25 12:11:10 localhost kernel: Bluetooth: Firmware file "ath3k-1.fw" not found
uzt 25 12:11:40 localhost drakscanner[2168]: running: /bin/systemctl --quiet is-enabled bluetooth.service
uzt 25 12:13:55 localhost polkitd[4795]: Operator of unix-session:c1 successfully authenticated as unix-user:root to gain TEMPORARY authorization for action org.freedesktop.systemd1.manage-units for system-bus-name::1.316 [systemctl restart dbus-org.bluez.service] (owned by unix-user:egoitz)
uzt 25 12:13:55 localhost bluetoothd[5977]: Terminating
uzt 25 12:13:55 localhost bluetoothd[5977]: Stopping SDP server
uzt 25 12:13:55 localhost bluetoothd[5977]: Exit
uzt 25 12:13:55 localhost bluetoothd[17238]: Bluetooth daemon 5.28
uzt 25 12:13:55 localhost bluetoothd[17238]: Starting SDP server
uzt 25 12:13:55 localhost bluetoothd[17238]: Bluetooth management interface 1.8 initialized
uzt 25 12:14:28 localhost polkitd[4795]: Operator of unix-session:c1 successfully authenticated as unix-user:root to gain TEMPORARY authorization for action org.freedesktop.systemd1.manage-unit-files for system-bus-name::1.320 [systemctl enable bluetooth.service] (owned by unix-user:egoitz)
uzt 25 12:14:32 localhost polkitd[4795]: Operator of unix-session:c1 successfully authenticated as unix-user:root to gain TEMPORARY authorization for action org.freedesktop.systemd1.reload-daemon for system-bus-name::1.320 [systemctl enable bluetooth.service] (owned by unix-user:egoitz)


systemctl status bluetooth.service

Code: Select all

 bluetooth.service - Bluetooth service
   Loaded: loaded (/usr/lib/systemd/system/bluetooth.service; enabled)
   Active: active (running) since lr. 2015-07-25 12:13:55 CEST; 2h 25min ago
     Docs: man:bluetoothd(8)
 Main PID: 17238 (bluetoothd)
   Status: "Running"
   CGroup: /system.slice/bluetooth.service
           └─17238 /usr/libexec/bluetooth/bluetoothd

uzt 25 12:13:55 localhost bluetoothd[17238]: Bluetooth daemon 5.28
uzt 25 12:13:55 localhost bluetoothd[17238]: Starting SDP server
uzt 25 12:13:55 localhost bluetoothd[17238]: Bluetooth management interface 1.8 initialized


lspcidrake -v

Code: Select all

unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Thermal Control Registers [BRIDGE_HOST] (vendor:8086 device:2c33 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Rank Registers [BRIDGE_HOST] (vendor:8086 device:2c32 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Address Registers [BRIDGE_HOST] (vendor:8086 device:2c31 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 2 Control Registers [BRIDGE_HOST] (vendor:8086 device:2c30 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Thermal Control Registers [BRIDGE_HOST] (vendor:8086 device:2c2b subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Rank Registers [BRIDGE_HOST] (vendor:8086 device:2c2a subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Address Registers [BRIDGE_HOST] (vendor:8086 device:2c29 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 1 Control Registers [BRIDGE_HOST] (vendor:8086 device:2c28 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Thermal Control Registers [BRIDGE_HOST] (vendor:8086 device:2c23 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Rank Registers [BRIDGE_HOST] (vendor:8086 device:2c22 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Address Registers [BRIDGE_HOST] (vendor:8086 device:2c21 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Channel 0 Control Registers [BRIDGE_HOST] (vendor:8086 device:2c20 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Test Registers [BRIDGE_HOST] (vendor:8086 device:2c1c subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller Target Address Decoder [BRIDGE_HOST] (vendor:8086 device:2c19 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 Integrated Memory Controller [BRIDGE_HOST] (vendor:8086 device:2c18 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 QPI Physical 0 [BRIDGE_HOST] (vendor:8086 device:2c11 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 QPI Link 0 [BRIDGE_HOST] (vendor:8086 device:2c10 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 QuickPath Architecture System Address Decoder [BRIDGE_HOST] (vendor:8086 device:2c01 subv:8086 subd:8086) (rev: 04)
unknown         : Intel Corporation|Xeon 5500/Core i7 QuickPath Architecture Generic Non-Core Registers [BRIDGE_HOST] (vendor:8086 device:2c41 subv:8086 subd:8086) (rev: 04)
firewire_ohci   : VIA Technologies, Inc.|VT6306/7/8 [Fire II(M)] IEEE 1394 OHCI Controller [SERIAL_FIREWIRE] (vendor:1106 device:3044 subv:1043 subd:81fe) (rev: c0)
sky2            : Marvell Technology Group Ltd.|88E8056 PCI-E Gigabit Ethernet Controller [NETWORK_ETHERNET] (vendor:11ab device:4364 subv:1043 subd:81f8) (rev: 12)
pata_marvell    : Marvell Technology Group Ltd.|88SE6121 SATA II / PATA Controller [STORAGE_IDE] (vendor:11ab device:6121 subv:1043 subd:8212) (rev: b2)
sky2            : Marvell Technology Group Ltd.|88E8056 PCI-E Gigabit Ethernet Controller [NETWORK_ETHERNET] (vendor:11ab device:4364 subv:1043 subd:81f8) (rev: 12)
snd_hda_intel   : NVIDIA Corporation|GK104 HDMI Audio Controller [MULTIMEDIA_AUDIO_DEV] (vendor:10de device:0e0a subv:1458 subd:3615) (rev: a1)
Card:NVIDIA GeForce 420 series and later: NVIDIA Corporation|GK104 [GeForce GTX 760] [DISPLAY_VGA] (vendor:10de device:1187 subv:1458 subd:3615) (rev: a1)
unknown         : Vendor 1a0a|Device 6202 [MULTIMEDIA_VIDEO] (vendor:1a0a device:6202 subv:1461 subd:6201) (rev: 01)
ata_piix        : Intel Corporation|82801JI (ICH10 Family) 2 port SATA IDE Controller #2 [STORAGE_IDE] (vendor:8086 device:3a26 subv:1043 subd:82d4)
i2c_i801        : Intel Corporation|82801JI (ICH10 Family) SMBus Controller [SERIAL_SMBUS] (vendor:8086 device:3a30 subv:1043 subd:82d4)
ata_piix        : Intel Corporation|82801JI (ICH10 Family) 4 port SATA IDE Controller #1 [STORAGE_IDE] (vendor:8086 device:3a20 subv:1043 subd:82d4)
lpc_ich         : Intel Corporation|82801JIR (ICH10R) LPC Interface Controller [BRIDGE_ISA] (vendor:8086 device:3a16 subv:1043 subd:82d4)
unknown         : Intel Corporation|82801 PCI Bridge [BRIDGE_PCI] (vendor:8086 device:244e) (rev: 90)
ehci_pci        : Intel Corporation|82801JI (ICH10 Family) USB2 EHCI Controller #1 [SERIAL_USB] (vendor:8086 device:3a3a subv:1043 subd:82d4)
uhci_hcd        : Intel Corporation|82801JI (ICH10 Family) USB UHCI Controller #3 [SERIAL_USB] (vendor:8086 device:3a36 subv:1043 subd:82d4)
uhci_hcd        : Intel Corporation|82801JI (ICH10 Family) USB UHCI Controller #2 [SERIAL_USB] (vendor:8086 device:3a35 subv:1043 subd:82d4)
uhci_hcd        : Intel Corporation|82801JI (ICH10 Family) USB UHCI Controller #1 [SERIAL_USB] (vendor:8086 device:3a34 subv:1043 subd:82d4)
shpchp          : Intel Corporation|82801JI (ICH10 Family) PCI Express Root Port 6 [BRIDGE_PCI] (vendor:8086 device:3a4a)
shpchp          : Intel Corporation|82801JI (ICH10 Family) PCI Express Root Port 5 [BRIDGE_PCI] (vendor:8086 device:3a48)
shpchp          : Intel Corporation|82801JI (ICH10 Family) PCI Express Root Port 3 [BRIDGE_PCI] (vendor:8086 device:3a44)
shpchp          : Intel Corporation|82801JI (ICH10 Family) PCI Express Root Port 1 [BRIDGE_PCI] (vendor:8086 device:3a40)
snd_hda_intel   : Intel Corporation|82801JI (ICH10 Family) HD Audio Controller [MULTIMEDIA_AUDIO_DEV] (vendor:8086 device:3a3e subv:1043 subd:82ea)
ehci_pci        : Intel Corporation|82801JI (ICH10 Family) USB2 EHCI Controller #2 [SERIAL_USB] (vendor:8086 device:3a3c subv:1043 subd:82d4)
uhci_hcd        : Intel Corporation|82801JI (ICH10 Family) USB UHCI Controller #6 [SERIAL_USB] (vendor:8086 device:3a39 subv:1043 subd:82d4)
uhci_hcd        : Intel Corporation|82801JI (ICH10 Family) USB UHCI Controller #5 [SERIAL_USB] (vendor:8086 device:3a38 subv:1043 subd:82d4)
uhci_hcd        : Intel Corporation|82801JI (ICH10 Family) USB UHCI Controller #4 [SERIAL_USB] (vendor:8086 device:3a37 subv:1043 subd:82d4)
i5500_temp      : Intel Corporation|7500/5520/5500/X58 I/O Hub Throttle Registers [SYSTEM_PIC] (vendor:8086 device:3438) (rev: 12)
unknown         : Intel Corporation|7500/5520/5500/X58 I/O Hub Control Status and RAS Registers [SYSTEM_PIC] (vendor:8086 device:3423) (rev: 12)
unknown         : Intel Corporation|7500/5520/5500/X58 I/O Hub GPIO and Scratch Pad Registers [SYSTEM_PIC] (vendor:8086 device:3422) (rev: 12)
i7core_edac     : Intel Corporation|7500/5520/5500/X58 I/O Hub System Management Registers [SYSTEM_PIC] (vendor:8086 device:342e) (rev: 12)
shpchp          : Intel Corporation|5520/5500/X58 I/O Hub PCI Express Root Port 7 [BRIDGE_PCI] (vendor:8086 device:340e) (rev: 12)
shpchp          : Intel Corporation|5520/5500/X58 I/O Hub PCI Express Root Port 3 [BRIDGE_PCI] (vendor:8086 device:340a) (rev: 12)
shpchp          : Intel Corporation|5520/5500/X58 I/O Hub PCI Express Root Port 1 [BRIDGE_PCI] (vendor:8086 device:3408) (rev: 12)
unknown         : Intel Corporation|5520/5500/X58 I/O Hub to ESI Port [BRIDGE_HOST] (vendor:8086 device:3405 subv:1043 subd:836b) (rev: 12)
hub             : Linux 3.19.8-desktop-3.mga5 uhci_hcd|UHCI Host Controller [Hub|Unused|Full speed (or root) hub] (vendor:1d6b device:0001)
usbhid          : Razer|Razer Mamba [Human Interface Device|Boot Interface Subclass|Mouse] (vendor:1532 device:000a)
hub             : Linux 3.19.8-desktop-3.mga5 uhci_hcd|UHCI Host Controller [Hub|Unused|Full speed (or root) hub] (vendor:1d6b device:0001)
hub             : Linux 3.19.8-desktop-3.mga5 uhci_hcd|UHCI Host Controller [Hub|Unused|Full speed (or root) hub] (vendor:1d6b device:0001)
hub             : Linux 3.19.8-desktop-3.mga5 uhci_hcd|UHCI Host Controller [Hub|Unused|Full speed (or root) hub] (vendor:1d6b device:0001)
hub             : Linux 3.19.8-desktop-3.mga5 uhci_hcd|UHCI Host Controller [Hub|Unused|Full speed (or root) hub] (vendor:1d6b device:0001)
hub             : Linux 3.19.8-desktop-3.mga5 uhci_hcd|UHCI Host Controller [Hub|Unused|Full speed (or root) hub] (vendor:1d6b device:0001)
hub             : Linux 3.19.8-desktop-3.mga5 ehci_hcd|EHCI Host Controller [Hub|Unused|Full speed (or root) hub] (vendor:1d6b device:0002)
hub             : Linux 3.19.8-desktop-3.mga5 ehci_hcd|EHCI Host Controller [Hub|Unused|Full speed (or root) hub] (vendor:1d6b device:0002)
hub             : NEC Corp.|HighSpeed Hub [Hub|Unused|Full speed (or root) hub] (vendor:0409 device:005a)

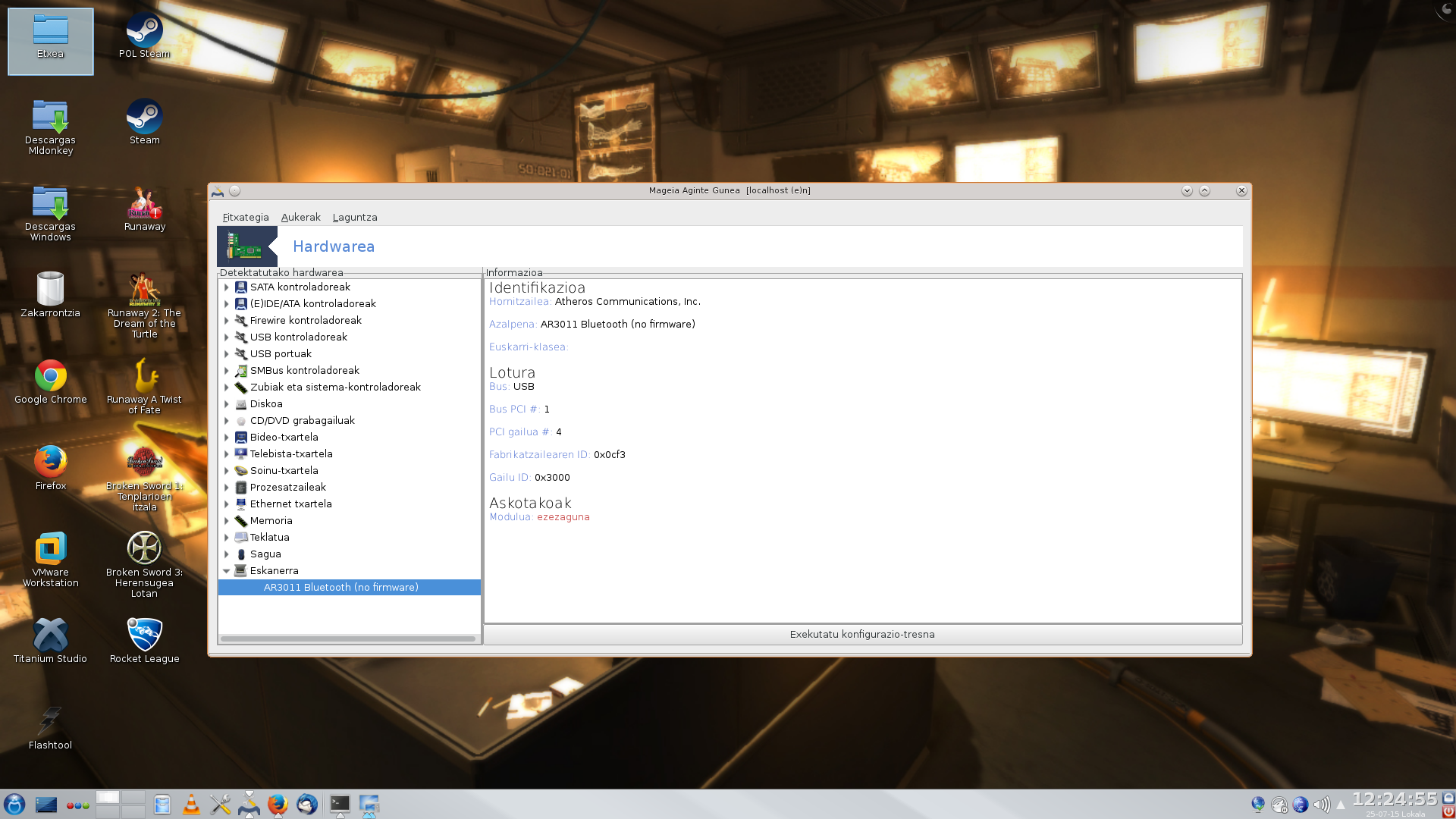

unknown         : Atheros Communications, Inc.|AR3011 Bluetooth (no firmware) (vendor:0cf3 device:3000)
hid_generic     : Razer Razer Mamba
hid_generic     : Razer Razer Mamba


rfkill list all --> nothing appears
hciconfig -a --> nothing appears

rpm -qa | grep -i blue

Code: Select all

bluez-firmware-1.2-12.mga5.nonfree
lib64bluedevil2-2.1-1.mga5
bluez-pin-0.30-16.mga5
python-qt5-bluetooth-5.4-1.mga5
qtbluetooth5-5.4.0-1.mga5
lib64gnome-bluetooth-gir1.0-3.14.0-3.mga5
lib64bluez-devel-5.28-1.mga5
lib64bluez3-5.28-1.mga5
bluedevil-2.1-1.mga5
gnome-bluetooth-3.14.0-3.mga5
pulseaudio-module-bluetooth-5.0-6.mga5
lib64qt5bluetooth5-5.4.0-1.mga5
bluez-5.28-1.mga5
bluez-hcidump-2.5-4.mga5
lib64gnome-bluetooth13-3.14.0-3.mga5


[doktor5000]

journalctl -ab | grep -i blue

uzt 25 01:53:11 localhost kernel: Bluetooth: Firmware file "ath3k-1.fw" not found
[...]
uzt 25 12:11:10 localhost kernel: Bluetooth: Firmware file "ath3k-1.fw" not found


unknown : Atheros Communications, Inc.|AR3011 Bluetooth (no firmware) (vendor:0cf3 device:3000)

rfkill list all --> nothing appears
hciconfig -a --> nothing appears

Firmware is missing, hence adapter is not working, which is shown in the latter outputs. You are missing kernel-firmware-nonfree package

Code: Select all

┌─[doktor5000@Mageia5]─[17:40:32]─[~]
└──╼ urpmf ath3k-1.fw
kernel-firmware-nonfree:/lib/firmware/ath3k-1.fw
kernel-firmware-nonfree:/lib/firmware/ath3k-1.fw

[egoitzro]

OK. Thank you

[doktor5000]

So after installing the firmware bluetooth is now working as expected?

[egoitzro]

Now wok ok
