SOLVED BROTHER MFC-J430W PRINTER ISSUE NOT WORKING

[Batmanxxx]

I have a Brother printer MFC-J430W when I use libreoffice wirter for example only shows generic printer shows up Please how do i Install and make the printer working ?? at the moment it set to work in wifi.

[benmc]

when I use libreoffice wirter for example only shows generic printer shows up

I dont understand.
Have you set up / configured the printer via Mageia Control Centre => hardware => configure printer?

[Batmanxxx]

Ok but how do you set up please in the configure printer ?

[Batmanxxx]

Please has you in see in the picture that it only says generic printer my printer brother mfc-j430w does not show up in order to have working and printing how do you set up it up in the configure printer section ??

[Batmanxxx]

The printer at the moment set in wifi

[sturmvogel]

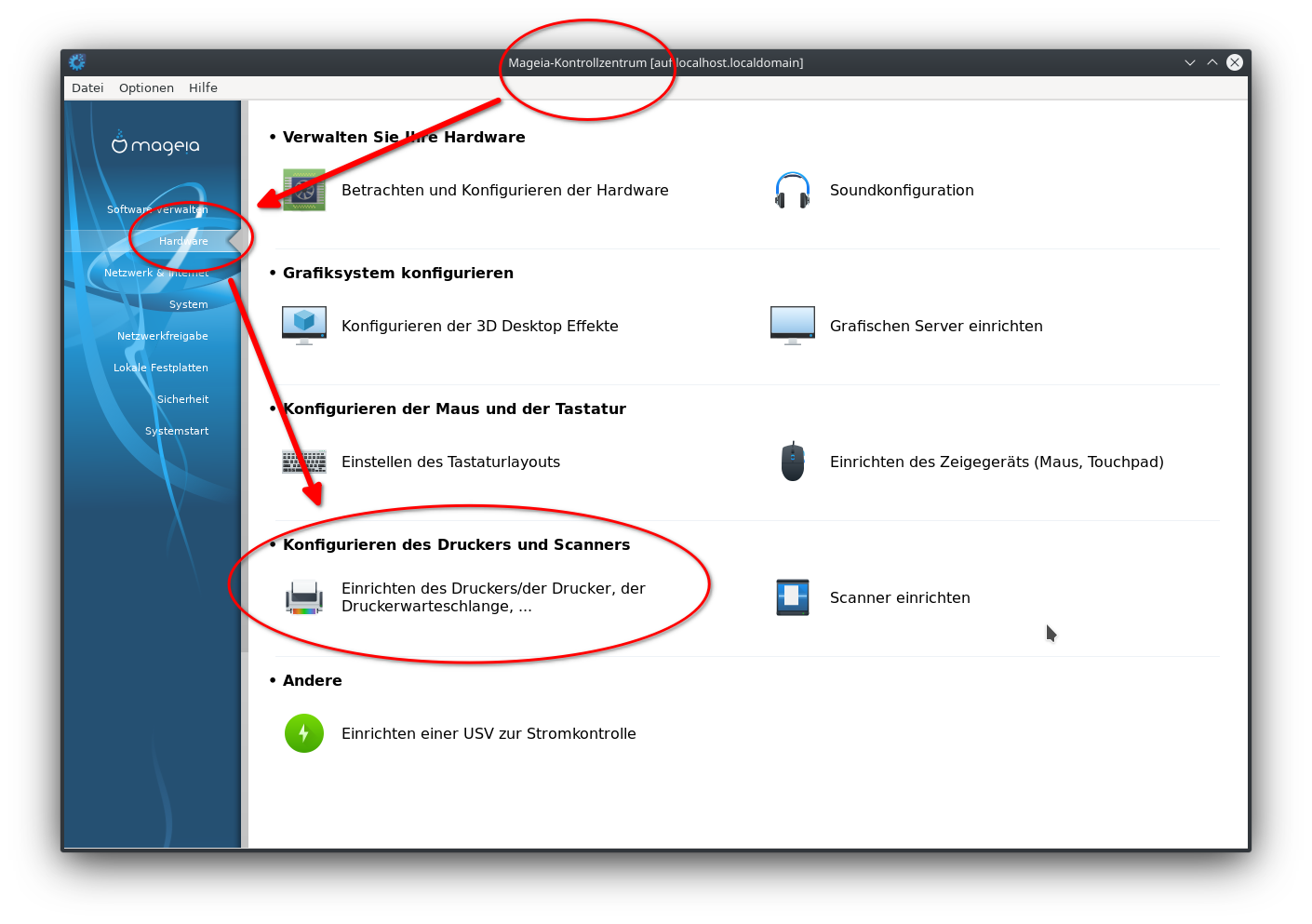

set up / configured the printer via Mageia Control Centre => hardware => configure printer?

Mageia Control Center.png (188.66 KiB) Viewed 16404 times

[Batmanxxx]

ok but what info do I have to put in?? I looked for my printer printer Briother MFC-J430W the drivers do not show up please how do set in up to have in printing

[Batmanxxx]

The IP address of my printer Is 192.168.001.100 if this helps but a not idea of how to get It working Thank you

[benmc]

1/ press the "add" button
2/in the "Select devices" window, choose "network printer" - has a little tirangle beside it
3/ choos the sub headding "Find network printer"
4/ in the window "Host" put in the printer URL - you need to get this from the printer., then => " find"
5/ it will scan for the printer, and if found will give a list of available printers. choose the "IPP (printer URL)" then => " forward"
6/ choose the make or the highlighted (recommended) , then => "forward"
7/ choose the driver or the highlighted (recommended), then =>"forward"
8/ enter the location and then => "apply" you will be asked to print a test page

[Batmanxxx]

Please where in the printer do I get the printer url ?

[Batmanxxx]

This my pinter in menu where can find printer url to insert to the host?

[benmc]

internet search results:

People also ask
How do I find my Brother printer's IP address?
Press the [Menu] and navigate to the WLAN tab (using the ▲/▼ arrows and the [OK] button) Press ▲ and select WLAN Status. Select Infrastructure Mode. The screen will display your network connection settings, your IP Address is listed on the third line.

[Batmanxxx]

If go in TCP/IP the ip address is 192.168.001.100 in WLAN there Is no ip address so.what Is the next step?

[isadora]

Did you try that IP-address into a browser?

[Batmanxxx]

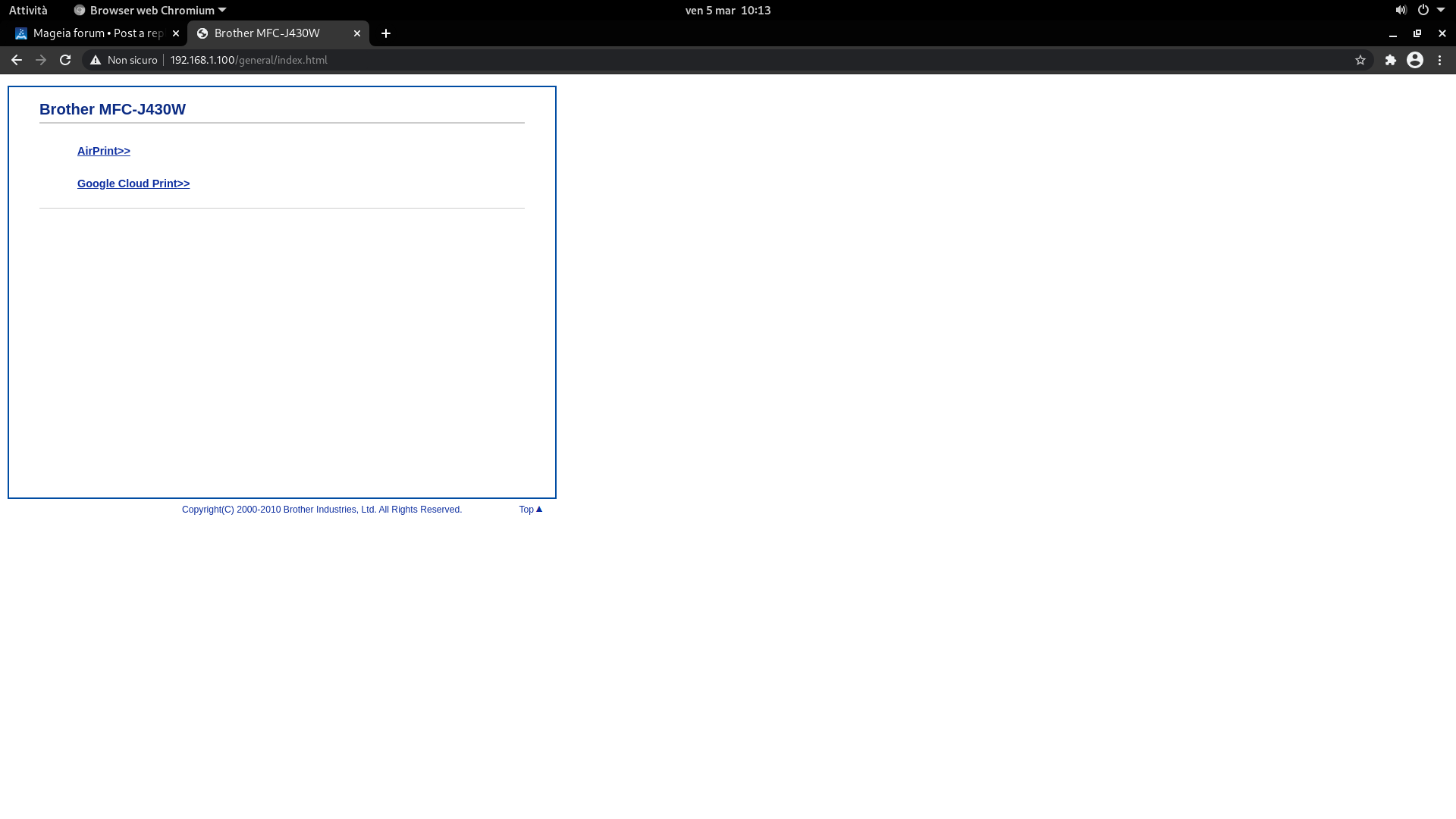

This is waht came out on the browser

[Batmanxxx]

even if I choose reccomended at the end of the process il always generic printer even if the ipp 192.168.001.100

[Batmanxxx]

Also because un the database of the drivers for Brother Mfc j430w when It searches for drivers that driver Is not in the database and at the point It Always chooses generic text Only (reccomended )obviuosly It does not print or work at all.

[sturmvogel]

Download the following drivers from the Brother support homepage:

https://support.brother.com/g/b/downloadhowto.aspx?c=de&lang=de&prod=mfcj430w_all&os=127&dlid=dlf006569_000&flang=4&type3=558 -> mfcj430wlpr-3.0.1-1.i386.rpm
https://support.brother.com/g/b/downloadhowto.aspx?c=de&lang=de&prod=mfcj430w_all&os=127&dlid=dlf006571_000&flang=4&type3=560 -> mfcj430wcupswrapper-3.0.0-1.i386.rpm

Please take note where you saved the drivers (as example to /home/yourusername/Downloads/), because you will need this path later.

Open a teminal and do the following commands:

Code: Select all

su -

It will ask for your ROOT passwort. Put it in and hit Enter

Code: Select all

cd /home/yourusername/Downloads/

Here you have to put the path where you saved the two drivers!!!!

Code: Select all

rpm -ihv --nodeps mfcj430wlpr-3.0.1-1.i386.rpm

It will install

Code: Select all

rpm -ihv --nodeps mfcj430wcupswrapper-3.0.0-1.i386.rpm

It will install

Code: Select all

exit

Open Mageia Software Center and go to printers. Your MFC-J430W shows up. Click on it and configure your printer (connection type USB or IP adress and so on and on...)

[Batmanxxx]

Thank you I Will try and let you know

[Batmanxxx]

sturmvogel Thank you so much you are the number one working 100% one last thing to have it scanning to what else is need I have installed simple scan installed ? I tried scanning but nothing.

[sturmvogel]

Download the scanner driver and do the above steps accordingly.
https://support.brother.com/g/b/downloadhowto.aspx?c=de&lang=de&prod=mfcj430w_all&os=127&dlid=dlf105203_000&flang=4&type3=564

[Batmanxxx]

I did downlaod the driver and i followed the instructions but the teminal command not found

[sturmvogel]

It is

Code: Select all

rpm -ihv --nodeps brscan4-0.4.10-1.x86_64.rpm

[Batmanxxx]

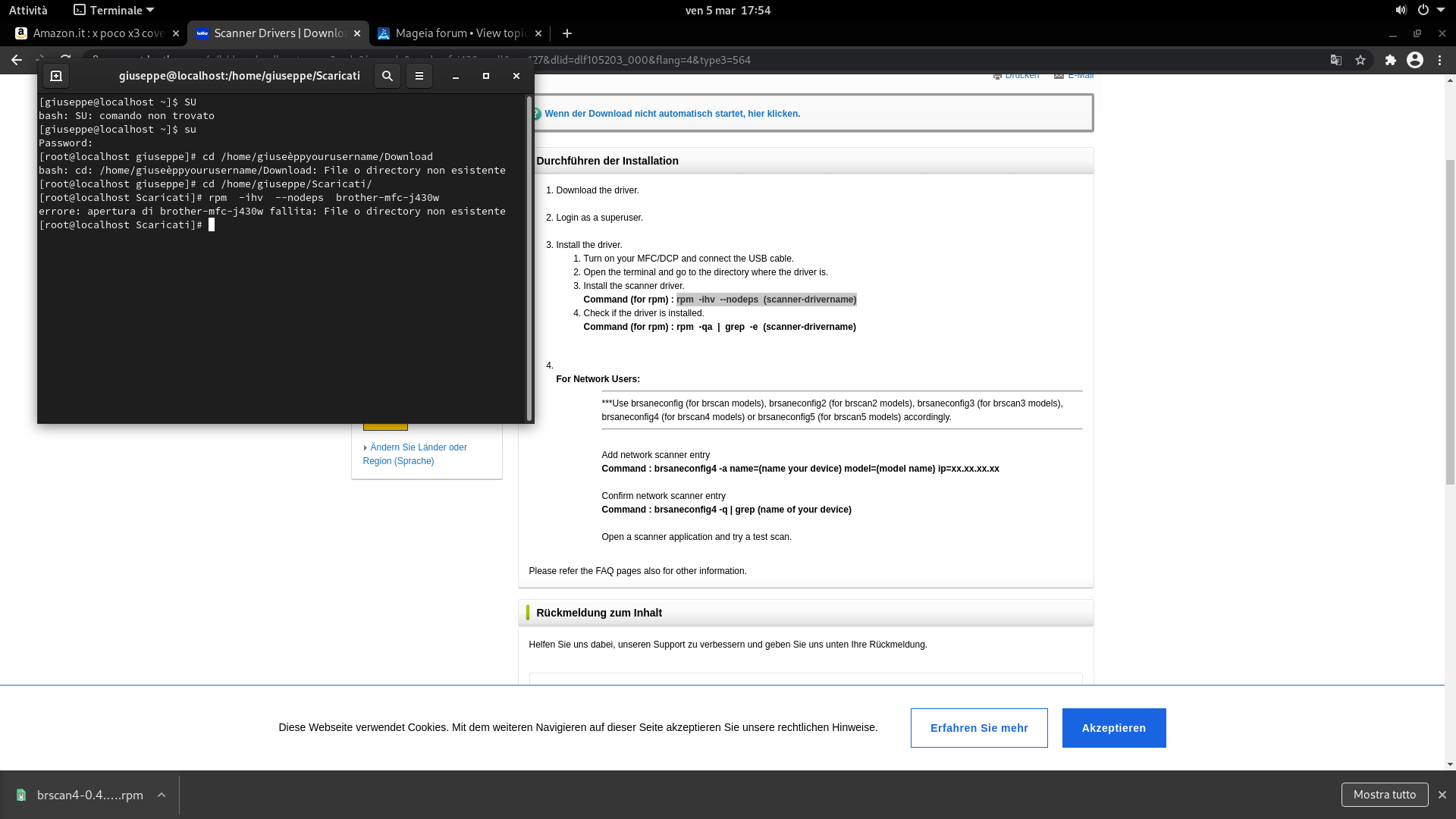

here the picture is clearer but it says no file or directory but i did download the file.

rpm -ihv --nodeps (scanner-drivername)

[sturmvogel]

Read my last post
