[SOLVED] Nvidia - Setting up display using port 1.4 on 43"

[comt0006]

Hi,

I have seen this post for a Nvidia video card and not sure if is the same problem as myself. It's about the only thing I haven't tried to get my displays working.
viewtopic.php?f=23&t=14555


I'll try to explain the details of my venture as best as possible.

I purchased a new Gigabyte G5 KD laptop (can be found here: https://www.gigabyte.com/ca/Laptop/G5-- ... 1th-Gen#kf and the specs here: https://www.gigabyte.com/ca/Laptop/G5-- ... -Gen/sp#sp) and installed a new SSD drive with Mageia 8. It's now dual booting with Windows and Mageia 8. I can't stand Windows which is the reason I installed Mageia.

The laptop has dual video cards, one Intel and the other Nvidia. Here are the specs for the cards - can also be found with more detail on the Gigabyte site - link above:

-Intel® UHD Graphics
-NVIDIA® GeForce RTX™ 3060 Laptop GPU 6GB GDDR6
Boost Clock 1425 MHz, Maximum Graphics Power 105 W
NVIDIA Max-Q Technologies:
Dynamic Boost 2.0, Resizable BAR, and Optimus™ Technology.

There are 3 out video ports so the laptop is able to have 3 displays plus the laptop screen for a total of 4 displays. This is the main reason I bought this laptop.

Here are the video ports:
1x DisplayPort 1.4 Type-C over USB 3.2 Gen 2 - plugged to a 43 inch UHD television - Type c to HDMI
1x HDMI 2.0 (with HDCP) - plugged in a regular 24 inch monitor - working like a charm by default
1x mini DP 1.2 - not plugged in yet but will be plugged in once I get my problem solved

I have been trying to configure the display port 1.4 that is hooked up to my 43" UHD television. I have been using the graphical interface to try and set it up and have failed many times. The closest that I have been to getting anything to work is using the following steps:

step 1 - Launch graphical interface tool from MCC

step 1 - select Nvidia option GeForce 420 to GeForce 630

step 2 - select option configure all heads independently

step 3 - install Nvidia propriatary drivers

step 4 - only select option Automatically start the graphical interface (Xorg) upon booting

Once all is installed I reboot and I can see the cauldron loading screen on all 3 displays (laptop, 24 inch monitor and the television) but then I get stopped with the errors "training failed" X 3 and "core notifier timeout" X 2.

At this point I can get to the command line but don't really know what to do from here. What I do is use the Mageia 8 cd to do an "update" to get back to default settings. Sometimes it works like a charm and I'm back to normal but sometimes I get locked out of my user account and need to delete 3 .Xautority files in my profile to get back in. I use root user to do this.

I then proceed to uninstall all Nvidia drivers and then reboot. At this point it looks like I'm back to normal and everything seems to work fine.

So far no luck with a multitude of settings.

I'm wondering if anyone could give me a pointer on how to get my setup working. I have very little experience in setting up displays in Linux and just enough experience to get by using the OS.

If anything is needed such as log files or screen shots please let me know and I'll get whatever is needed.

Thanks for anyone who has a look.

Cheers

[doktor5000]

Just a quick update.

I tried the instructions in post viewtopic.php?f=23&t=14555 and followed all directions accurately. Everything seemed to have gone well but when I rebooted I got a black screen with a blinking cursor. I then have to get to a command line to run the following command to get things up and running again:

Code: Select all

mv /etc/X11/xorg.conf /etc/X11/xorg.conf.org
init 6

This gets me going again.



Here is the xorg.conf file that I moved in my previous command. Maybe there is a hint of what is wrong:

Code: Select all

# nvidia-xconfig: X configuration file generated by nvidia-xconfig
# nvidia-xconfig:  version 510.68.02

# File generated by XFdrake (rev 262502)
# **********************************************************************
# Refer to the xorg.conf man page for details about the format of
# this file.
# **********************************************************************

Section "ServerLayout"

    #Option "Xinerama"
    Identifier     "layout1"
    Screen         "screen1" 0 0
    Screen         "screen2" RightOf "screen1"
    InputDevice    "Keyboard0" "CoreKeyboard"
    InputDevice    "Mouse0" "CorePointer"
EndSection

Section "Module"
    Load           "v4l" # Video for Linux
    Load           "glx"
EndSection

Section "ServerFlags"
 # allows the server to start up even if the mouse does not work
    #DontZoom # disable <Ctrl><Alt><KP_+>/<KP_-> (resolution switching)
    Option         "DontZap" "False" # disable <Ctrl><Alt><BS> (server abort)
    Option         "allowmouseopenfail"
EndSection

Section "InputDevice"
    # generated from data in "/etc/sysconfig/keyboard"
    Identifier     "Keyboard0"
    Driver         "kbd"
    Option         "XkbLayout" "us"
    Option         "XkbModel" "pc105"
EndSection

Section "InputDevice"
    # generated from default
    Identifier     "Mouse0"
    Driver         "mouse"
    Option         "Protocol" "auto"
    Option         "Device" "/dev/psaux"
    Option         "Emulate3Buttons" "no"
    Option         "ZAxisMapping" "4 5"
EndSection

Section "Monitor"

    # Apple iMac modes
    Identifier     "monitor1"
    VendorName     "Plug'n Play"
    ModeLine       "1024x768" 78.525 1024 1049 1145 1312 768 769 772 800 +hsync +vsync
    ModeLine       "800x600" 62.357 800 821 901 1040 600 601 604 632 +hsync +vsync
    ModeLine       "640x480" 49.886 640 661 725 832 480 481 484 514 +hsync +vsync
    ModeLine       "832x624" 57 832 876 940 1152 624 625 628 667 -hsync -vsync
    ModeLine       "800x600" 100 800 816 824 840 600 616 624 640 -hsync -vsync
    ModeLine       "1152x768" 78.741 1152 1173 1269 1440 768 769 772 800 +vsync
    ModeLine       "1024x768" 65 1024 1032 1176 1344 768 771 777 806 -hsync -vsync
    ModeLine       "1024x768" 65 1024 1048 1184 1344 768 771 777 806 -hsync -vsync
    ModeLine       "1024x768" 112.62 1024 1076 1248 1420 768 768 780 808 +hsync +vsync
    ModeLine       "1280x1024" 135 1280 1288 1392 1664 1024 1027 1030 1064
    ModeLine       "1280x1024" 134.989 1280 1317 1429 1688 1024 1025 1028 1066 +hsync +vsync
    ModeLine       "768x576" 50.00 768 832 846 1000 576 590 595 630
    ModeLine       "768x576" 63.07 768 800 960 1024 576 578 590 616
EndSection

Section "Monitor"

    # Apple iMac modes
    Identifier     "monitor2"
    VendorName     "Plug'n Play"
    ModeLine       "1024x768" 78.525 1024 1049 1145 1312 768 769 772 800 +hsync +vsync
    ModeLine       "800x600" 62.357 800 821 901 1040 600 601 604 632 +hsync +vsync
    ModeLine       "640x480" 49.886 640 661 725 832 480 481 484 514 +hsync +vsync
    ModeLine       "832x624" 57 832 876 940 1152 624 625 628 667 -hsync -vsync
    ModeLine       "800x600" 100 800 816 824 840 600 616 624 640 -hsync -vsync
    ModeLine       "1152x768" 78.741 1152 1173 1269 1440 768 769 772 800 +vsync
    ModeLine       "1024x768" 65 1024 1032 1176 1344 768 771 777 806 -hsync -vsync
    ModeLine       "1024x768" 65 1024 1048 1184 1344 768 771 777 806 -hsync -vsync
    ModeLine       "1024x768" 112.62 1024 1076 1248 1420 768 768 780 808 +hsync +vsync
    ModeLine       "1280x1024" 135 1280 1288 1392 1664 1024 1027 1030 1064
    ModeLine       "1280x1024" 134.989 1280 1317 1429 1688 1024 1025 1028 1066 +hsync +vsync
    ModeLine       "768x576" 50.00 768 832 846 1000 576 590 595 630
    ModeLine       "768x576" 63.07 768 800 960 1024 576 578 590 616
EndSection

Section "Device"
    Identifier     "device1"
    Driver         "nvidia"
    VendorName     "Intel Corporation"
    BoardName      "Intel 810 and later"
    BusID          "PCI:0:2:0"
    Screen          0
EndSection

Section "Device"
    Identifier     "device2"
    Driver         "nvidia"
    VendorName     "NVIDIA Corporation"
    BoardName      "NVIDIA GeForce 635 series and later"
    BusID          "PCI:1:0:0"
    Screen          0
EndSection

Section "Screen"
    Identifier     "screen1"
    Device         "device1"
    Monitor        "monitor1"
    DefaultDepth    24
    Option         "DPMS"
    SubSection     "Display"
        Depth       24
        Modes      "nvidia-auto-select"
    EndSubSection
EndSection

Section "Screen"
    Identifier     "screen2"
    Device         "device2"
    Monitor        "monitor2"
    DefaultDepth    24
    Option         "DPMS"
    SubSection     "Display"
        Depth       24
        Modes      "nvidia-auto-select"
    EndSubSection
EndSection

I'll keep trying to figure this out and will report back later.

Thanks for anyone who has a look.

Cheers

[sturmvogel]

There are several things which don't seems right.

step 1 - select Nvidia option GeForce 420 to GeForce 630

This is the wrong driver. In MCC you have to chose "Geforce 635 series and later". But this will only configure your Nvidia card. As you have an Optimus laptop you should have a look here: https://wiki.mageia.org/en/Mageia-prime_for_Optimus. There you will see that it is recommended to start setup with Intel card only.

Furthermore your card is already supported by the 470.x driver series, so no need to install the 510.x series. Btw you didn't state clearly how you have installed the 510.x driver. Via the Nvidia installer or via the driver from Mageia backports media?

When you had the HDMI port running, did you try to activate the other outputs (DP 1.4 as example). Here it is necessary to know which desktop environment you are using. As example under Plasma -> Systemsettings -> Hardware -> Display and Monitor you can activate/deactivate outputs and monitors. Or also in the Nvidia settings you are able to enable/disable Monitors ...

As your system seems to have a completly "mixed" setup now, it will be really hard to troubleshoot....

[comt0006]

Hi sturmvogel,

Thanks for taking the time for having a look and replying.

I tried using the option "Geforce 635 series and later" with many options such as installing the Nvidia proprietary drivers and not installing the Nvidia proprietary drivers and both options failed. Probably because I have been doing too much stuff. That's when I tried the Nvidia 510.x driver which I downloaded from the Nvidia site and installed using a shell command. All seemed to work until I rebooted.

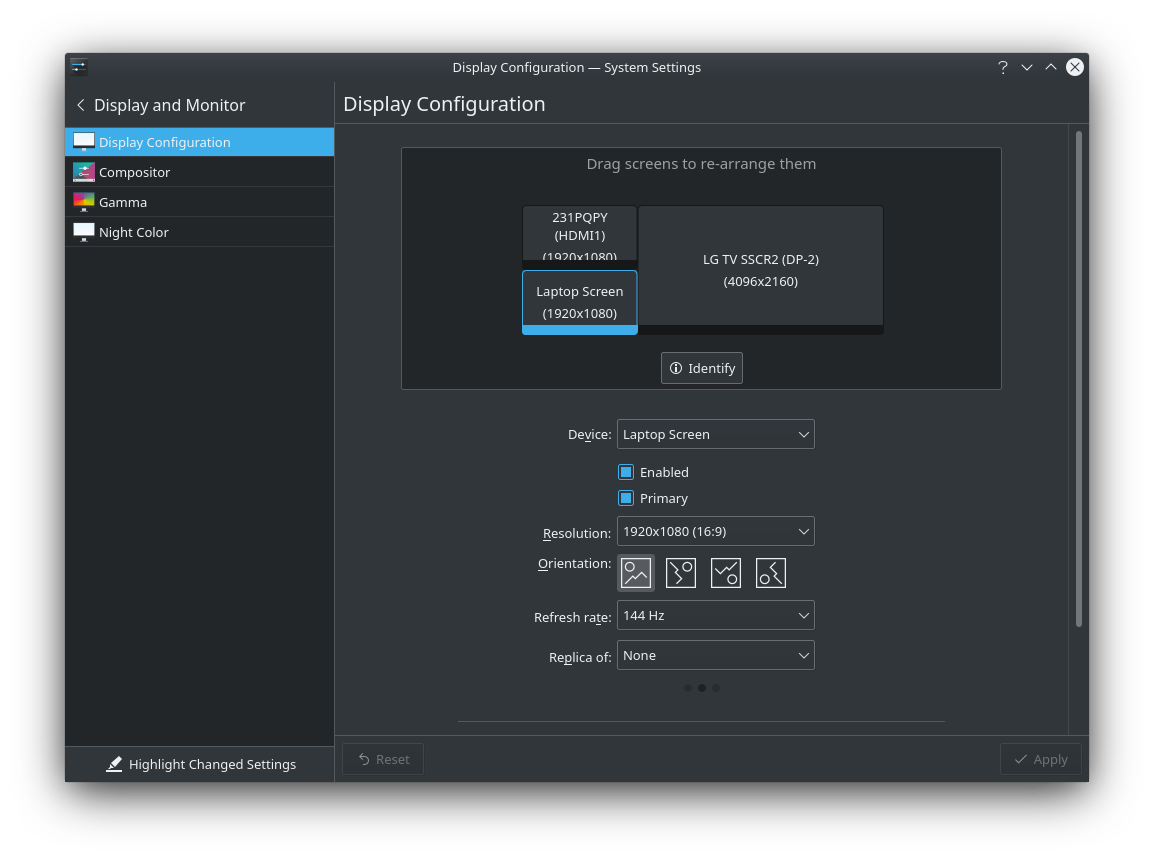

I didn't know Plasma had options for activate/deactivate outputs and monitors. I will certainly look into this.

I've been saving all my xorg.conf files, mostly the working ones and with tid bits of each I decided to try and edit the xorg.conf file myself to try and get things going. I got all 3 displays working but when I move my cursor to the 24" monitor or the laptop it's really choppy. Also the background on the 24" display is black. When I launch the Display Configuration tool I see all three displays. Screen shot attached.

Here is my new xorg.conf file after I edited it:

Code: Select all

# File generated by XFdrake (rev 262502)

# **********************************************************************
# Refer to the xorg.conf man page for details about the format of
# this file.
# **********************************************************************

Section "ServerFlags"
    AllowMouseOpenFail # allows the server to start up even if the mouse does not work
    Option "DontZap" "False" # disable <Ctrl><Alt><BS> (server abort)
    #DontZoom # disable <Ctrl><Alt><KP_+>/<KP_-> (resolution switching)
EndSection

Section "Module"
    Load "v4l" # Video for Linux
EndSection

Section "Monitor"
    Identifier     "Monitor0"
    VendorName     "Unknown"
    ModelName      "Unknown"
    Option         "DPMS"
EndSection

Section "Monitor"
    Identifier "monitor1"
    VendorName "Plug'n Play"

    # Monitor supported modeline (60.2 Hz vsync, 68.8 kHz hsync, ratio 16/9, 141 dpi)
    ModeLine "1920x1080" 143 1920 2028 2076 2080 1080 1083 1088 1142 -hsync -vsync

    # Monitor preferred modeline (144.1 Hz vsync, 170.1 kHz hsync, ratio 16/9, 141 dpi)
    ModeLine "1920x1080" 353.8 1920 2028 2076 2080 1080 1083 1088 1180 -hsync -vsync

    # Apple iMac modes
    ModeLine "1024x768"   78.525 1024 1049 1145 1312   768  769  772  800 +hsync +vsync
    ModeLine "800x600"    62.357  800  821  901 1040   600  601  604  632 +hsync +vsync
    ModeLine "640x480"    49.886  640  661  725  832   480  481  484  514 +hsync +vsync

    # Apple monitors tend to do 832x624
    ModeLine "832x624"    57      832  876  940 1152   624  625  628  667 -hsync -vsync

    # Apple PowerBook G3
    ModeLine "800x600"    100     800  816  824  840   600  616  624  640 -hsync -vsync

    # Apple TI Powerbook
    ModeLine "1152x768"   78.741 1152 1173 1269 1440   768  769  772  800 +vsync +vsync

    # Pismo Firewire G3
    ModeLine "1024x768"   65     1024 1032 1176 1344   768  771  777  806 -hsync -vsync

    # iBook2
    ModeLine "1024x768"   65     1024 1048 1184 1344   768  771  777  806 -hsync -vsync

    # 17" Apple Studio Display
    ModeLine "1024x768"   112.62 1024 1076 1248 1420 768 768 780 808 +hsync +vsync

    # HiRes Apple Studio Display
    ModeLine "1280x1024"  135    1280 1288 1392 1664  1024 1027 1030 1064

    # Another variation
    ModeLine "1280x1024"  134.989 1280 1317 1429 1688  1024 1025 1028 1066 +hsync +vsync

    # TV fullscreen mode or DVD fullscreen output.
    # 768x576 @ 79 Hz, 50 kHz hsync
    ModeLine "768x576"     50.00  768  832  846 1000   576  590  595  630

    # 768x576 @ 100 Hz, 61.6 kHz hsync
    ModeLine "768x576"     63.07  768  800  960 1024   576  578  590  616
EndSection

Section "Monitor"
    Identifier "monitor2"
    VendorName "Plug'n Play"

    # Monitor supported modeline (60.2 Hz vsync, 68.8 kHz hsync, ratio 16/9, 141 dpi)
    ModeLine "1920x1080" 143 1920 2028 2076 2080 1080 1083 1088 1142 -hsync -vsync

    # Monitor preferred modeline (144.1 Hz vsync, 170.1 kHz hsync, ratio 16/9, 141 dpi)
    ModeLine "1920x1080" 353.8 1920 2028 2076 2080 1080 1083 1088 1180 -hsync -vsync

    # Apple iMac modes
    ModeLine "1024x768"   78.525 1024 1049 1145 1312   768  769  772  800 +hsync +vsync
    ModeLine "800x600"    62.357  800  821  901 1040   600  601  604  632 +hsync +vsync
    ModeLine "640x480"    49.886  640  661  725  832   480  481  484  514 +hsync +vsync

    # Apple monitors tend to do 832x624
    ModeLine "832x624"    57      832  876  940 1152   624  625  628  667 -hsync -vsync

    # Apple PowerBook G3
    ModeLine "800x600"    100     800  816  824  840   600  616  624  640 -hsync -vsync

    # Apple TI Powerbook
    ModeLine "1152x768"   78.741 1152 1173 1269 1440   768  769  772  800 +vsync +vsync

    # Pismo Firewire G3
    ModeLine "1024x768"   65     1024 1032 1176 1344   768  771  777  806 -hsync -vsync

    # iBook2
    ModeLine "1024x768"   65     1024 1048 1184 1344   768  771  777  806 -hsync -vsync

    # 17" Apple Studio Display
    ModeLine "1024x768"   112.62 1024 1076 1248 1420 768 768 780 808 +hsync +vsync

    # HiRes Apple Studio Display
    ModeLine "1280x1024"  135    1280 1288 1392 1664  1024 1027 1030 1064

    # Another variation
    ModeLine "1280x1024"  134.989 1280 1317 1429 1688  1024 1025 1028 1066 +hsync +vsync

    # TV fullscreen mode or DVD fullscreen output.
    # 768x576 @ 79 Hz, 50 kHz hsync
    ModeLine "768x576"     50.00  768  832  846 1000   576  590  595  630

    # 768x576 @ 100 Hz, 61.6 kHz hsync
    ModeLine "768x576"     63.07  768  800  960 1024   576  578  590  616
EndSection

Section "Device"
    Identifier     "Device0"
    Driver         "nvidia"
    VendorName     "NVIDIA Corporation"
    BusID          "PCI:1:0:0"
EndSection

Section "Device"
    Identifier "device1"
    VendorName "Intel Corporation"
    BoardName "Intel 810 and later"
    Driver "intel"
    Screen 0
    BusID "PCI:0:2:0"
    Option "DPMS"
EndSection

Section "Device"
    Identifier "device2"
    VendorName "NVIDIA Corporation"
    BoardName "NVIDIA GeForce 635 series and later"
    Driver "nouveau"
    Screen 0
    BusID "PCI:1:0:0"
    Option "DPMS"
EndSection

Section "Screen"
    Identifier     "Screen0"
    Device         "Device0"
    Monitor        "Monitor0"
    DefaultDepth    24
    SubSection     "Display"
        Depth       24
    EndSubSection
EndSection

Section "Screen"
    Identifier "screen1"
    Device "device1"
    Monitor "monitor1"
EndSection

Section "Screen"
    Identifier "screen2"
    Device "device2"
    Monitor "monitor2"
EndSection

Section "ServerLayout"
    Identifier "layout1"
    Option "Xinerama"
    Screen "screen1"
    Screen "screen2" RightOf "screen1"
    Screen "Screen0" RightOf "screen2"
EndSection


You are right when you mention that I have done a whole lot of different installs and changed settings so it might be impossible to trouble shoot. if that is the case I have no issue doing a completely fresh install. Let me know.

The only problem now really is that the laptop and 24" displays is very slow using the mouse and the 24" display has the black background which isn't ideal.

In the meantime I'll have a look at the Plasma settings for activating/deactivating outputs and monitors to see if I have any luck.

Again many thanks for having a look and giving some suggestions. Much appreciated.

Cheers

[sturmvogel]

I didn't know Plasma had options for activate/deactivate outputs and monitors. I will certainly look into this.

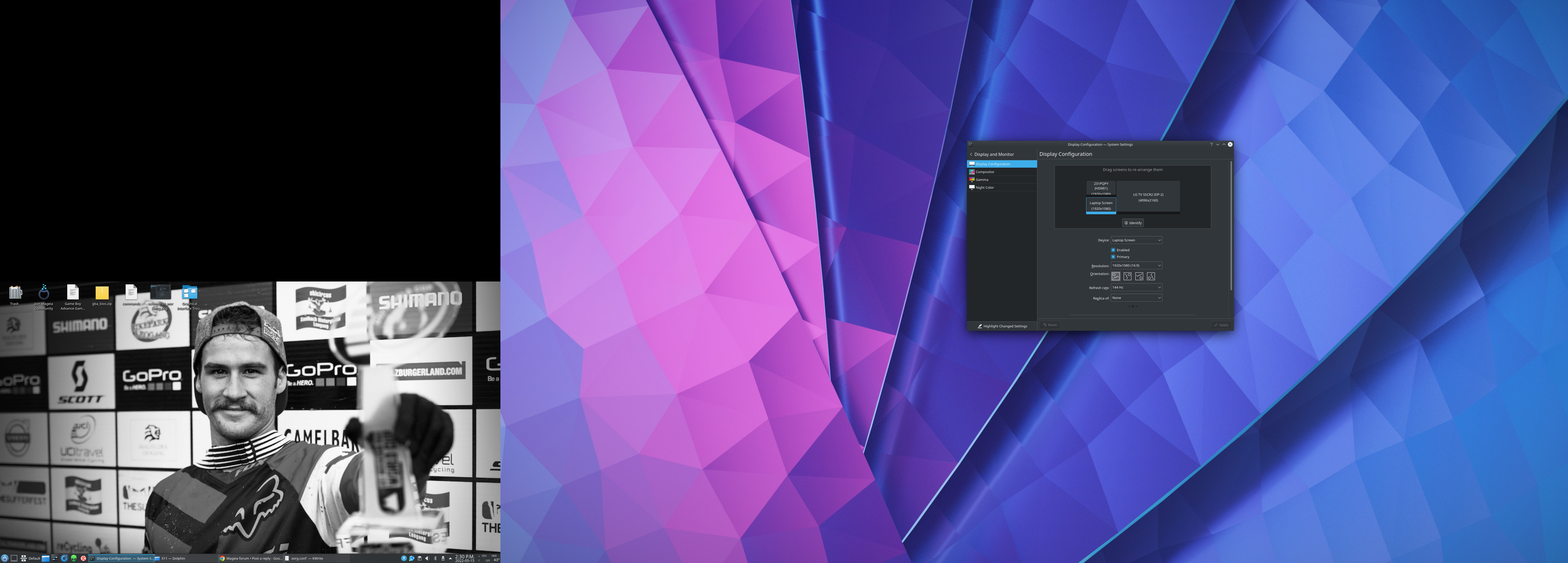

The setting-window which is shown in your pictures is that what i meant. So you found it already.

Also the background on the 24" display is black

You should be able to change that with a right-click on this desktop and "Configure desktop and wallpaper"

but when I move my cursor to the 24" monitor or the laptop it's really choppy

You can try to play with either the "Compositor" settings (in the left pane of the settings window which you showed) or with the nvidia-settings (in your application starter menu). Also try to play with the refresh rate (Hz). To find a good setting "may" be tricky. But i have only seen this "choppy" behaviour when my computers where connected to a TV.

This is only a theory: It could be possible that it is to much for an Laptop graphic card to power three monitors at the same time. There everything could be a throttleneck (lanes, RAM, CPU, GPU, ...)


Note: Please use the [code ] tags (on top of the editor) when you post large configs. This makes it easier to read. See your second comment where doktor5000 (one of our forum admins) added them for you.

[comt0006]

Hi sturmvogel,

I did some more tweaking of the xorg.conf file because it wasn't exactly what I thought is should be and low and behold I now have all 3 displays working flawlessly. I never thought I could get all this working by just editing the xorg.conf file but here I am, a very happy man.

Here is the xorg.conf file for anyone else looking for this type of solution:

Code: Select all

# File generated by XFdrake (rev 262502)

# **********************************************************************
# Refer to the xorg.conf man page for details about the format of
# this file.
# **********************************************************************

Section "ServerFlags"
    AllowMouseOpenFail # allows the server to start up even if the mouse does not work
    Option "DontZap" "False" # disable <Ctrl><Alt><BS> (server abort)
    #DontZoom # disable <Ctrl><Alt><KP_+>/<KP_-> (resolution switching)
EndSection

Section "Module"
    Load "v4l" # Video for Linux
EndSection

Section "Monitor"
    Identifier     "Monitor0"
    VendorName     "LG"
    ModelName      "Unknown"
    Option         "DPMS"
EndSection

Section "Monitor"
    Identifier "monitor1"
    VendorName "Plug'n Play"

    # Monitor supported modeline (60.2 Hz vsync, 68.8 kHz hsync, ratio 16/9, 141 dpi)
    ModeLine "1920x1080" 143 1920 2028 2076 2080 1080 1083 1088 1142 -hsync -vsync

    # Monitor preferred modeline (144.1 Hz vsync, 170.1 kHz hsync, ratio 16/9, 141 dpi)
    ModeLine "1920x1080" 353.8 1920 2028 2076 2080 1080 1083 1088 1180 -hsync -vsync

    # Apple iMac modes
    ModeLine "1024x768"   78.525 1024 1049 1145 1312   768  769  772  800 +hsync +vsync
    ModeLine "800x600"    62.357  800  821  901 1040   600  601  604  632 +hsync +vsync
    ModeLine "640x480"    49.886  640  661  725  832   480  481  484  514 +hsync +vsync

    # Apple monitors tend to do 832x624
    ModeLine "832x624"    57      832  876  940 1152   624  625  628  667 -hsync -vsync

    # Apple PowerBook G3
    ModeLine "800x600"    100     800  816  824  840   600  616  624  640 -hsync -vsync

    # Apple TI Powerbook
    ModeLine "1152x768"   78.741 1152 1173 1269 1440   768  769  772  800 +vsync +vsync

    # Pismo Firewire G3
    ModeLine "1024x768"   65     1024 1032 1176 1344   768  771  777  806 -hsync -vsync

    # iBook2
    ModeLine "1024x768"   65     1024 1048 1184 1344   768  771  777  806 -hsync -vsync

    # 17" Apple Studio Display
    ModeLine "1024x768"   112.62 1024 1076 1248 1420 768 768 780 808 +hsync +vsync

    # HiRes Apple Studio Display
    ModeLine "1280x1024"  135    1280 1288 1392 1664  1024 1027 1030 1064

    # Another variation
    ModeLine "1280x1024"  134.989 1280 1317 1429 1688  1024 1025 1028 1066 +hsync +vsync

    # TV fullscreen mode or DVD fullscreen output.
    # 768x576 @ 79 Hz, 50 kHz hsync
    ModeLine "768x576"     50.00  768  832  846 1000   576  590  595  630

    # 768x576 @ 100 Hz, 61.6 kHz hsync
    ModeLine "768x576"     63.07  768  800  960 1024   576  578  590  616
EndSection

Section "Monitor"
    Identifier "monitor2"
    VendorName "Plug'n Play"

    # Monitor supported modeline (60.2 Hz vsync, 68.8 kHz hsync, ratio 16/9, 141 dpi)
    ModeLine "1920x1080" 143 1920 2028 2076 2080 1080 1083 1088 1142 -hsync -vsync

    # Monitor preferred modeline (144.1 Hz vsync, 170.1 kHz hsync, ratio 16/9, 141 dpi)
    ModeLine "1920x1080" 353.8 1920 2028 2076 2080 1080 1083 1088 1180 -hsync -vsync

    # Apple iMac modes
    ModeLine "1024x768"   78.525 1024 1049 1145 1312   768  769  772  800 +hsync +vsync
    ModeLine "800x600"    62.357  800  821  901 1040   600  601  604  632 +hsync +vsync
    ModeLine "640x480"    49.886  640  661  725  832   480  481  484  514 +hsync +vsync

    # Apple monitors tend to do 832x624
    ModeLine "832x624"    57      832  876  940 1152   624  625  628  667 -hsync -vsync

    # Apple PowerBook G3
    ModeLine "800x600"    100     800  816  824  840   600  616  624  640 -hsync -vsync

    # Apple TI Powerbook
    ModeLine "1152x768"   78.741 1152 1173 1269 1440   768  769  772  800 +vsync +vsync

    # Pismo Firewire G3
    ModeLine "1024x768"   65     1024 1032 1176 1344   768  771  777  806 -hsync -vsync

    # iBook2
    ModeLine "1024x768"   65     1024 1048 1184 1344   768  771  777  806 -hsync -vsync

    # 17" Apple Studio Display
    ModeLine "1024x768"   112.62 1024 1076 1248 1420 768 768 780 808 +hsync +vsync

    # HiRes Apple Studio Display
    ModeLine "1280x1024"  135    1280 1288 1392 1664  1024 1027 1030 1064

    # Another variation
    ModeLine "1280x1024"  134.989 1280 1317 1429 1688  1024 1025 1028 1066 +hsync +vsync

    # TV fullscreen mode or DVD fullscreen output.
    # 768x576 @ 79 Hz, 50 kHz hsync
    ModeLine "768x576"     50.00  768  832  846 1000   576  590  595  630

    # 768x576 @ 100 Hz, 61.6 kHz hsync
    ModeLine "768x576"     63.07  768  800  960 1024   576  578  590  616
EndSection

Section "Device"
    Identifier     "Device0"
    Driver         "nvidia"
    VendorName     "NVIDIA Corporation"
    BusID          "PCI:1:0:0"
EndSection

Section "Device"
    Identifier "device1"
    VendorName "Intel Corporation"
    BoardName "Intel 810 and later"
    Driver "intel"
    BusID "PCI:0:2:0"
    Option "DPMS"
EndSection

Section "Device"
    Identifier     "Device2"
    Driver         "nvidia"
    VendorName     "NVIDIA Corporation"
    BusID          "PCI:1:0:0"
EndSection

Section "Screen"
    Identifier     "Screen0"
    Device         "Device0"
    Monitor        "Monitor0"
    DefaultDepth    24
    SubSection     "Display"
        Depth       24
    EndSubSection
EndSection

Section "Screen"
    Identifier "screen1"
    Device "device1"
    Monitor "monitor1"
    DefaultDepth    24
    SubSection     "Display"
        Depth       24
    EndSubSection
EndSection

Section "Screen"
    Identifier "screen2"
    Device "device2"
    Monitor "monitor2"
    DefaultDepth    24
    SubSection     "Display"
        Depth       24
    EndSubSection
EndSection

Section "ServerLayout"
    Identifier "layout1"
    Option "Xinerama"
    Screen "screen1"
    Screen "screen2" RightOf "screen1"
    Screen "Screen0" RightOf "screen2"
EndSection


I will edit the file further to remove some of the unnecessary resolutions that I will just not use just for the sake of cleaning things up. I love a clean config file.

Thanks again for taking the time to have a look and respond to my post. It is greatly appreciated.

Cheers,

[Germ]

Please edit your topic title and add [SOLVED] at the start.
