Error while changing resolution of primary display [Done]

[doktor5000]

You don't need to run xrandr every time to get the proper resolution, and you don't need to run it automatically.
You only have to preconfigure it once as described e.g. in https://wiki.archlinux.org/index.php/mu ... _xorg.conf
but you need to setup the correct values once.

[JJF]

Ayyached below are the xrander reconized modes.

Code: Select all

[jacob@localhost ~]$ xrandr -q
Screen 0: minimum 320 x 200, current 2560 x 1024, maximum 32767 x 32767
VGA1 connected primary 1280x1024+0+0 (normal left inverted right x axis y axis) 0mm x 0mm
   1280x1024_60   60.0*
   1280x1024      60.0
   1280x960_60    60.0
   1152x864_60    60.0
   1024x768       60.0
   1024x768_60    60.0
   832x624_60     60.0
   800x600        60.3     56.2
   800x600_60     60.0
   640x480        59.9
HDMI1 disconnected (normal left inverted right x axis y axis)
HDMI2 connected 1280x1024+1280+0 (normal left inverted right x axis y axis) 376mm x 301mm
   1280x1024      75.0*+   60.0
   1280x960       60.0
   1280x800       74.9     59.9
   1152x864       75.0     60.0
   1280x768       74.9     60.0
   1280x720       60.0
   1024x768       75.1     70.1     60.0
   1024x576       60.0
   800x600        72.2     75.0     60.3     56.2
   848x480        60.0
   640x480        75.0     72.8     60.0
   720x400        70.1
VIRTUAL1 disconnected (normal left inverted right x axis y axis)

and here are the cvt modeline(s)

Code: Select all

[jacob@localhost ~]$ cvt 1280x1024 60
# 1280x60 51.40 Hz (CVT) hsync: 3.91 kHz; pclk: 6.25 MHz
Modeline "1280x60_60.00"    6.25  1280 1320 1440 1600  60 63 73 76 -hsync +vsync
[jacob@localhost ~]$
[jacob@localhost ~]$ cvt 1280x1024 75
# 1280x75 51.51 Hz (CVT) hsync: 4.69 kHz; pclk: 7.50 MHz
Modeline "1280x75_60.00"    7.50  1280 1320 1440 1600  75 78 88 91 -hsync +vsync
[jacob@localhost ~]$


I tried, again unsuccessfully to implement "my own" xorg.conf .
Enterred user name and password after boot, the system does not complete the process of adding the 5 circled over the broken circle of Mageia logo.

JJF

[JJF]

Apparently my reply did not reach anywhere, so I send it again.

I hope it'll help to make some progress
Tks
JJF

[JJF]

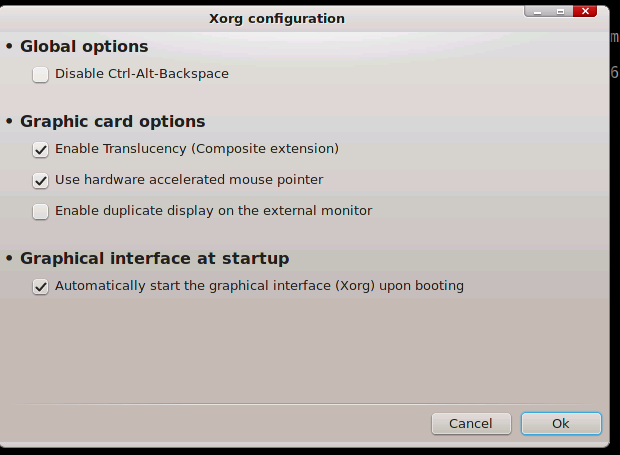

I unmraked the "Enable duplicate display on the external monitoe" from XFdrake option.
Even though I still could not save the configuratio due to the error reported, the unmirrored dual display survived reboot.
All my efforts to modify xorg.conf as recomended, failed.
In short, I managed to acheive my dual display setup.

Thanks to all who tried to help
jjf

[doktor5000]

Glad that you got it sorted finally

I unmraked the "Enable duplicate display on the external monitoe" from XFdrake option.

For completeness sake, this is not enabled by default, also this wasn't in the xorg.conf you posted previously.

Was this enabled the whole time? And did you enable it on purpose?

[JJF]

I can't remember if it was marked by default . I guess that during my efforts to use 2 displays, I myself checked it.
In any case' I am still unable , while using the system tools "display", to change and/or save a different settings as I get the same error message reported at my initial post
Tks
JJF

[doktor5000]

Then please report that as a bug, after searching if it hasn't been reported yet already: https://wiki.mageia.org/en/How_to_report_a_bug_properly
