von **macgeia** » Aug 9th, '14, 13:52

Hallo.
Ich habe hier Probleme mit dem RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller
und dem Modul ‎r8169 ( direkt am router per DHCP ) . Nach dem Einrichten per Kpontrollzentrum läuft alles gut,
bis zum nächsten Neustart dann muss ich immer kurz den Netzwerkstecker abziehen damit es zu einer Verbindung kommt.
Hier gab es ein WIKI :
http://wiki.hetzner.de/index.php/Instal ... 8-Treibers
Bevor ich jetzt anzuwerkeln fange wollte ich mal fragen ob jemand das Problem kennt ?
Gruß und Danke !!

von **Oli** » Aug 9th, '14, 14:51

RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller
Modul ‎r8169 ( direkt am router per DHCP )
Mageia 4 32bit

Genau so sieht es bei mir auch aus, allerdings habe ich überhaupt keine Probleme damit.

von **doktor5000** » Aug 9th, '14, 23:29

Bitte mal die Ausgaben von

Code: Alles auswählen: lscpidrake -v | grep NET cat /var/log/boot.log journalctl -ab | grep -C2 -i r8169

Ich kann mich an ein ähnliches Problem erinnern mit einer bestimmen Variante des Realtek-Adapters. Der r8169 ist ja für eine ganze Reihe an Realtek-Chipsätzen zuständig ...

Siehe evtl. auch: https://forums.mageia.org/en/viewtopic.php?f=7&t=2631

von **macgeia** » Aug 10th, '14, 15:22

Code: Alles auswählen: [root@Office-Oben olaf]# lscpidrake -v | grep NET bash: lscpidrake: Kommando nicht gefunden.

Code: Alles auswählen: [root@Office-Oben olaf]# cat /var/log/boot.log switch_root: old root filesystem is not an initramfs: Success Welcome to Mageia 4! Starting Collect Read-Ahead Data... Starting Replay Read-Ahead Data... [ OK ] Reached target Login Prompts. [ OK ] Reached target Network is Online. [ OK ] Listening on Delayed Shutdown Socket. [ OK ] Listening on /dev/initctl Compatibility Named Pipe. [ OK ] Set up automount Arbitrary Executable File Formats File System Automount Point. [ OK ] Listening on Journal Socket. Starting Create list of required static device nodes for the current kernel... Mounting RPC Pipe File System... Mounting RPC Pipe File System... Mounting Huge Pages File System... Starting Journal Service... [ OK ] Started Journal Service. [ OK ] Reached target Encrypted Volumes. Mounting Debug File System... Mounting POSIX Message Queue File System... Starting Set default kernel console loglevel... Expecting device dev-disk-by\x2duuid-e7615625\x2dcebe\x2d4840\x2d8b...61b4529efd.device... Starting Configure read-only root support... Starting Import network configuration from initramfs... [ OK ] Listening on udev Kernel Socket. [ OK ] Listening on udev Control Socket. Starting udev Coldplug all Devices... Mounting Temporary Directory... Expecting device dev-disk-by\x2duuid-f07ec26f\x2dfb0c\x2d4a43\x2db6...5359585963.device... [ OK ] Created slice Root Slice. [ OK ] Created slice User and Session Slice. [ OK ] Created slice System Slice. [ OK ] Created slice system-getty.slice. [ OK ] Reached target Slices. Expecting device dev-disk-by\x2duuid-9850558e\x2dc03d\x2d42f8\x2dbc...e4732db8a0.device... [ OK ] Started Create list of required static device nodes for the current kernel. [ OK ] Mounted Huge Pages File System. [ OK ] Mounted Debug File System. [ OK ] Mounted POSIX Message Queue File System. [ OK ] Started Set default kernel console loglevel. [ OK ] Mounted Temporary Directory. [ OK ] Started udev Coldplug all Devices. Starting udev Wait for Complete Device Initialization... Starting Create static device nodes in /dev... [ OK ] Started Collect Read-Ahead Data. [ OK ] Started Replay Read-Ahead Data. Starting Load legacy module configuration... Starting Setup Virtual Console... Starting Apply Kernel Variables... Starting Load Kernel Modules... Starting Remount Root and Kernel File Systems... [ OK ] Started Setup Virtual Console. [ OK ] Mounted RPC Pipe File System. [ OK ] Started Apply Kernel Variables. [ OK ] Started Load Kernel Modules. [ OK ] Started Remount Root and Kernel File Systems. Starting Load/Save Random Seed... [ OK ] Started Create static device nodes in /dev. Starting udev Kernel Device Manager... [ OK ] Reached target Local File Systems (Pre). [ OK ] Started udev Kernel Device Manager. [ OK ] Started Import network configuration from initramfs. [ OK ] Started Load/Save Random Seed. [ OK ] Started udev Wait for Complete Device Initialization. Starting Wait for storage scan... [ OK ] Mounted RPC Pipe File System. [ OK ] Started Wait for storage scan. [ OK ] Started Load legacy module configuration. [ OK ] Started Configure read-only root support. [ OK ] Reached target Sound Card. [ OK ] Found device WDC_WD15EARS-00MVWB0. Starting File System Check on /dev/disk/by-uuid/9850558e-c03d-42f8-bc33-61e4732db8a0... [ OK ] Found device WDC_WD15EARS-00MVWB0. Starting File System Check on /dev/disk/by-uuid/f07ec26f-fb0c-4a43-b6c1-985359585963... [ OK ] Found device WDC_WD15EARS-00MVWB0. Activating swap /dev/disk/by-uuid/e7615625-cebe-4840-8bbf-ea61b4529efd... [ OK ] Activated swap /dev/disk/by-uuid/e7615625-cebe-4840-8bbf-ea61b4529efd. [ OK ] Reached target Swap. [ 12.381060] systemd-fsck[622]: /dev/sda7: clean, 19643/22405120 files, 4798844/89600521 blocks [ OK ] Started File System Check on /dev/disk/by-uuid/f07ec26f-fb0c-4a43-b6c1-985359585963. Mounting /home... [ OK ] Mounted /home. [ 13.174474] systemd-fsck[614]: Daten: clean, 18352/67665920 files, 19125923/270649055 blocks [ OK ] Started File System Check on /dev/disk/by-uuid/9850558e-c03d-42f8-bc33-61e4732db8a0. Mounting /usr/local... [ OK ] Mounted /usr/local. [ OK ] Reached target Local File Systems. Starting Reconfigure the system on administrator request... Starting Save boot dmesg content... Starting Tell Plymouth To Write Out Runtime Data... netprofile wird gestartet: The default is the current profile. [ OK ] Starting Create Volatile Files and Directories... [ OK ] Started Tell Plymouth To Write Out Runtime Data. [ OK ] Started Create Volatile Files and Directories. Starting Update UTMP about System Reboot/Shutdown... [ OK ] Started Update UTMP about System Reboot/Shutdown. [ OK ] Reached target System Initialization. [ OK ] Reached target Timers. Starting Manage Sound Card State (restore and store)... [ OK ] Started Manage Sound Card State (restore and store). [ OK ] Reached target Paths. [ OK ] Listening on RPCbind Server Activation Socket. [ OK ] Listening on CUPS Printing Service Sockets. [ OK ] Listening on PC/SC Smart Card Daemon Activation Socket. [ OK ] Listening on Avahi mDNS/DNS-SD Stack Activation Socket. [ OK ] Listening on D-Bus System Message Bus Socket. [ OK ] Reached target Sockets. [ OK ] Started Save boot dmesg content. fglrx (14.010.1006-1.mga4.nonfree): Already installed on this kernel. Suche neue Hardware-Komponenten [ OK ] [ OK ] Started Reconfigure the system on administrator request. [ OK ] Reached target Basic System. Starting irqbalance daemon... [ OK ] Started irqbalance daemon. Starting LSB: Wait for the hotplugged network to be up... Starting LSB: Checks if a partition is close to full up... Starting LSB: Update the Intel / AMD CPU microcode... Starting LSB: Enables MSEC security policy on boot... Starting LSB: Locks NumLock key at init runlevel change... Starting ip6tables Firewall for IPv6... Starting iptables Firewall for IPv4... Starting NTP client/server... Starting ACPI Event Daemon... Starting Configure CPU power related settings... Starting Login Service... Starting Daemon for power management... Starting D-Bus System Message Bus... [ OK ] Started D-Bus System Message Bus. Starting CUPS Printing Service... [ OK ] Started CUPS Printing Service. Starting Avahi mDNS/DNS-SD Stack... Starting UDisks Daemon... [ OK ] Started LSB: Update the Intel / AMD CPU microcode. [ OK ] Started LSB: Enables MSEC security policy on boot. [ OK ] Started LSB: Locks NumLock key at init runlevel change. [ OK ] Started ip6tables Firewall for IPv6. [ OK ] Started iptables Firewall for IPv4. [ OK ] Started ACPI Event Daemon. [ OK ] Started Configure CPU power related settings. Starting LSB: Bring up/down networking... [ OK ] Started LSB: Checks if a partition is close to full up. [ OK ] Started NTP client/server. [ OK ] Started Daemon for power management. [ OK ] Started UDisks Daemon. [ OK ] Started Avahi mDNS/DNS-SD Stack. Starting Make remote CUPS printers available locally... [ OK ] Started Make remote CUPS printers available locally. Starting Authorization Manager... [ OK ] Started Login Service. [ OK ] Started Authorization Manager. [ OK ] Started LSB: Bring up/down networking. Starting Manage, Install and Generate Color Profiles... [ OK ] Started Manage, Install and Generate Color Profiles. [* ] A start job is running for LSB: Wait for the hotplugged network to be u[** ] A start job is running for LSB: Wait for the hotplugged network to be u[*** ] A start job is running for LSB: Wait for the hotplugged network to be u[ *** ] A start job is running for LSB: Wait for the hotplugged network to be u[ OK ] Started LSB: Wait for the hotplugged network to be up. [ OK ] Reached target Host and Network Name Lookups. [ OK ] Reached target Network. Starting LSB: Samba servers (nmbd and smbd)... Starting Shorewall IPv4 firewall... Starting Privacy enhancing HTTP Proxy... Starting Shorewall IPv6 firewall... Starting RPC bind service... Mounting /mnt/Musik... [ OK ] Started RPC bind service. Starting NFS file locking service.... [ OK ] Reached target RPC Port Mapper. Starting NFS Server... [FAILED] Failed to mount /mnt/Musik. See 'systemctl status mnt-Musik.mount' for details. [DEPEND] Dependency failed for Remote File Systems. Starting Trigger Flushing of Journal to Persistent Storage... [ OK ] Started Trigger Flushing of Journal to Persistent Storage. Starting Permit User Sessions... [ OK ] Started Permit User Sessions. Starting Command Scheduler... [ OK ] Started Command Scheduler. Starting Wait for Plymouth Boot Screen to Quit... Starting Display Manager... [ OK ] Started Display Manager. Starting LSB: ATI Events Daemon... Starting LSB: Adaptive readahead daemon... [ OK ] Started NFS file locking service.. [ OK ] Started NFS Server. [ OK ] Started LSB: Adaptive readahead daemon. [ OK ] Started LSB: ATI Events Daemon. Starting NFS Mount Daemon...

Code: Alles auswählen: [root@Office-Oben olaf]# journalctl -ab | grep -C2 -i r8169 Aug 10 16:12:12 Office-Oben kernel: usbcore: registered new interface driver uvcvideo Aug 10 16:12:12 Office-Oben kernel: USB Video Class driver (1.1.1) Aug 10 16:12:12 Office-Oben kernel: r8169 Gigabit Ethernet driver 2.3LK-NAPI loaded Aug 10 16:12:12 Office-Oben kernel: r8169 0000:03:00.0: irq 50 for MSI/MSI-X Aug 10 16:12:12 Office-Oben kernel: r8169 0000:03:00.0 eth0: RTL8168e/8111e at 0xffffc90000670000, 6c:62:6d:90:06:92, XID 0c200000 IRQ 50 Aug 10 16:12:12 Office-Oben kernel: r8169 0000:03:00.0 eth0: jumbo features [frames: 9200 bytes, tx checksumming: ko] Aug 10 16:12:12 Office-Oben kernel: snd_hda_intel 0000:00:1b.0: irq 51 for MSI/MSI-X Aug 10 16:12:12 Office-Oben kernel: hda_codec: ALC887-VD: SKU not ready 0x411111f0 -- Aug 10 16:12:27 Office-Oben avahi-daemon[900]: Service "Office-Oben" (/services/udisks.service) successfully established. Aug 10 16:12:27 Office-Oben avahi-daemon[900]: Service "Office-Oben" (/services/ssh.service) successfully established. Aug 10 16:12:27 Office-Oben kernel: r8169 0000:03:00.0 enp3s0: link down Aug 10 16:12:27 Office-Oben kernel: IPv6: ADDRCONF(NETDEV_UP): enp3s0: link is not ready Aug 10 16:12:27 Office-Oben network[904]: Aktivieren der Loopback-Schnittstelle: [ OK ] Aug 10 16:12:27 Office-Oben ifplugd(enp3s0)[1112]: ifplugd 0.28 initializing. Aug 10 16:12:27 Office-Oben ifplugd(enp3s0)[1112]: Using interface enp3s0/6C:62:6D:90:06:92 with driver <r8169> (version: 2.3LK-NAPI) Aug 10 16:12:27 Office-Oben ifplugd(enp3s0)[1112]: Using detection mode: SIOCETHTOOL Aug 10 16:12:27 Office-Oben ifplugd(enp3s0)[1112]: Initialization complete, link beat not detected. -- Aug 10 16:13:10 Office-Oben systemd[1]: Starting Stop Read-Ahead Data Collection... Aug 10 16:13:10 Office-Oben systemd[1]: Started Stop Read-Ahead Data Collection. Aug 10 16:13:17 Office-Oben kernel: r8169 0000:03:00.0 enp3s0: link up Aug 10 16:13:17 Office-Oben kernel: IPv6: ADDRCONF(NETDEV_CHANGE): enp3s0: link becomes ready Aug 10 16:13:18 Office-Oben ifplugd(enp3s0)[1112]: Link beat detected.

von **jkowalzik** » Aug 10th, '14, 19:27

Hallo!

macgeia hat geschrieben:[root@Office-Oben olaf]# lscpidrake -v | grep NET

...kann das mal jemand im vorigen Beitrag zwischen [code][/code] reinflicken

Gruß
J

von **doktor5000** » Aug 11th, '14, 00:05

macgeia hat geschrieben:
Code: Alles auswählen
[root@Office-Oben olaf]# lscpidrake -v | grep NET bash: lscpidrake: Kommando nicht gefunden.

Sorry, war ein Fipptehler. Sollte heißen

Code: Alles auswählen: lspcidrake -v | grep NET

von **macgeia** » Aug 11th, '14, 13:03

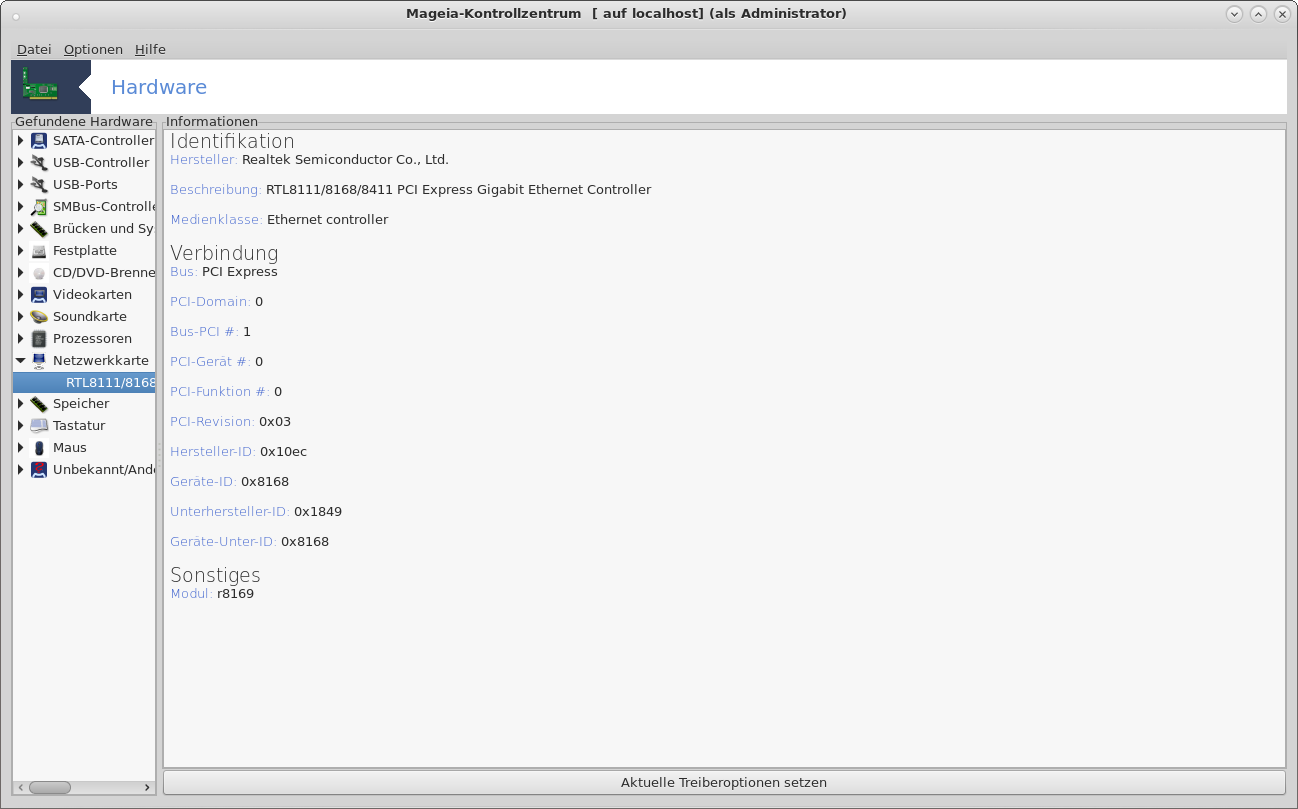

Code: Alles auswählen: [olaf@Office-Oben ~]$ lspcidrake -v | grep NET r8169 : Realtek Semiconductor Co., Ltd.|RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [NETWORK_ETHERNET] (vendor:10ec device:8168 subv:1462 subd:7708) (rev: 06)

von **macgeia** » Aug 14th, '14, 15:38

Kennt jemand vielleicht eine Lan USB bzw. interne Karten Lösung die nicht auf diesen Chipsatz beruht ?

von **doktor5000** » Aug 14th, '14, 15:47

Das ist einer der Threads die ich meinte: https://forums.mageia.org/en/viewtopic. ... 081#p13081
Der andere war hier im Forum: viewtopic.php?f=15&t=1876
